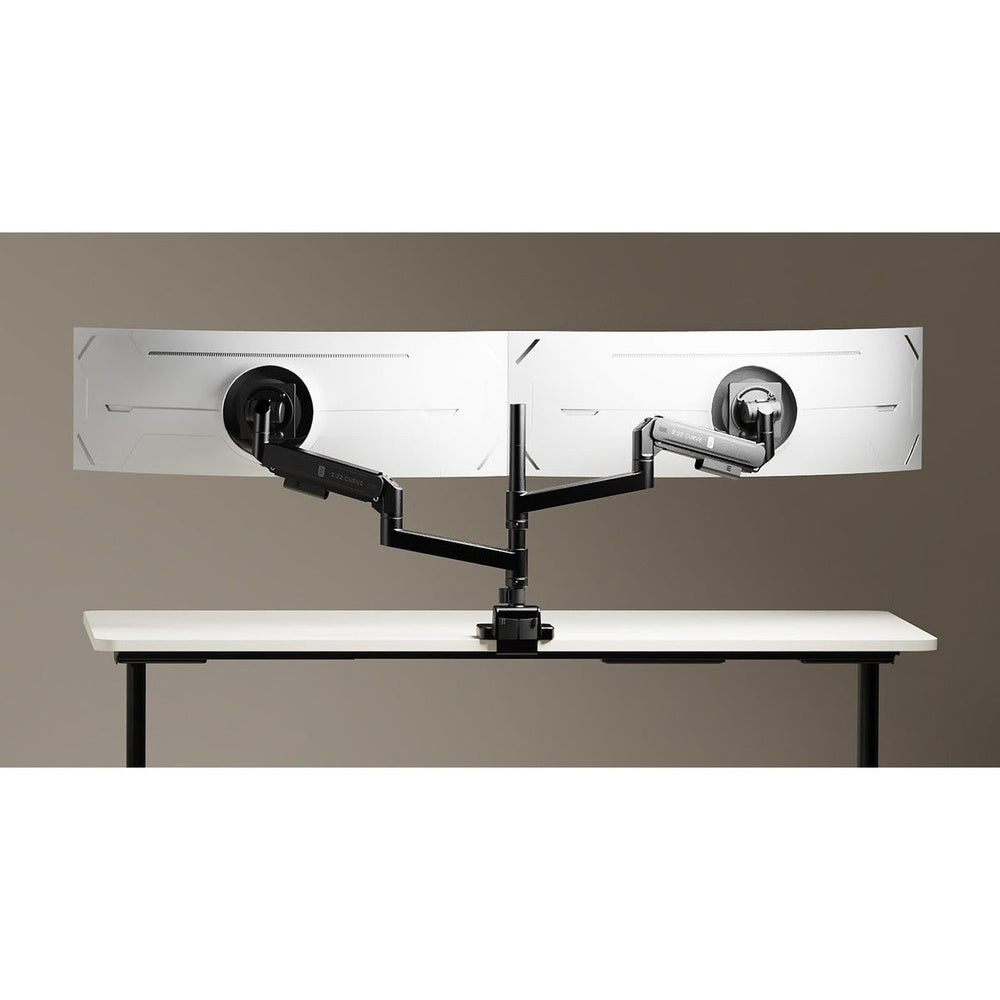

Thinking Works 2:22 Curve dual monitor arm in matte black holding two monitors side by side

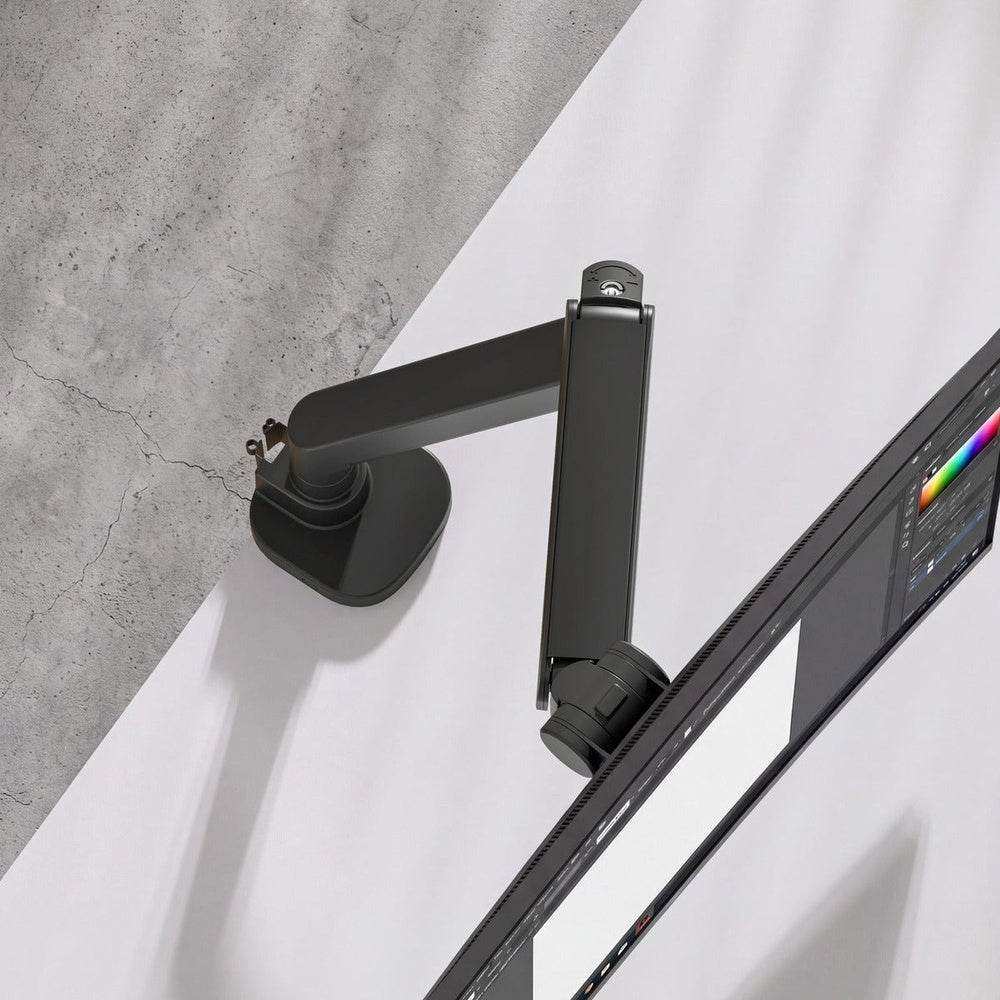

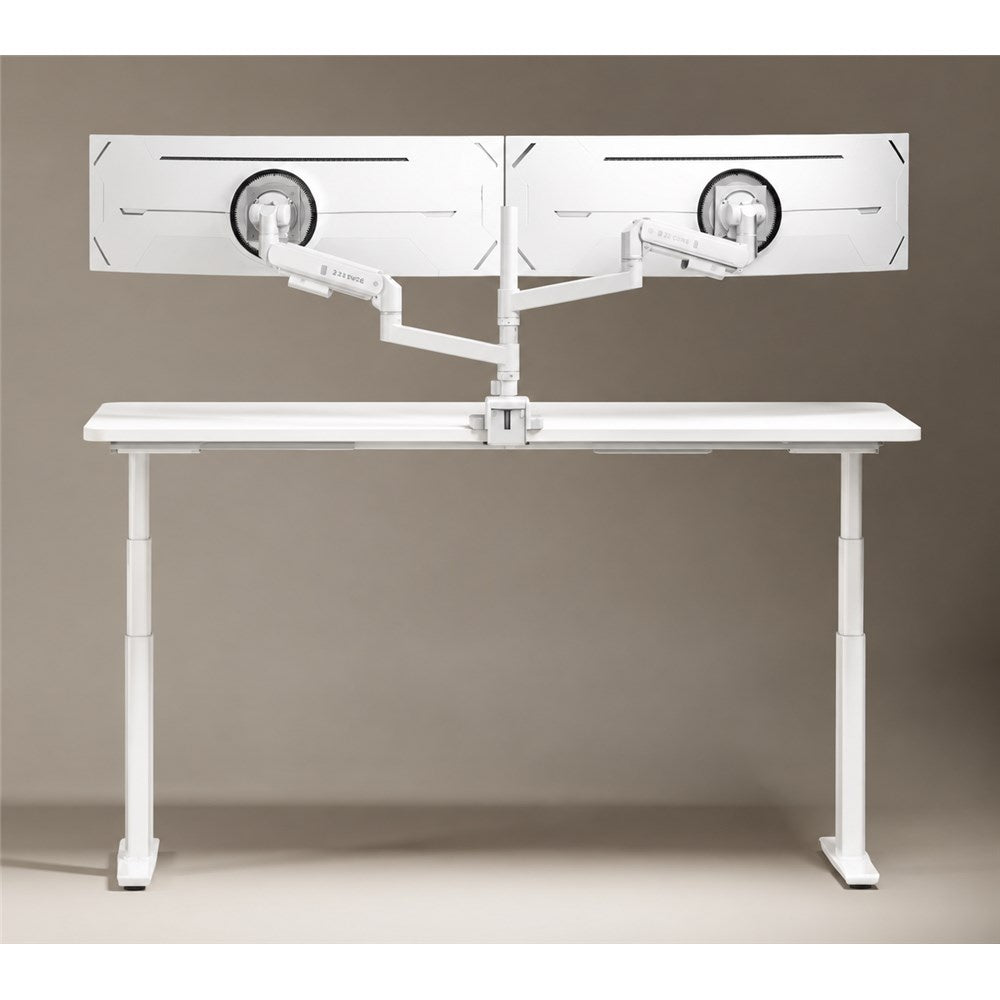

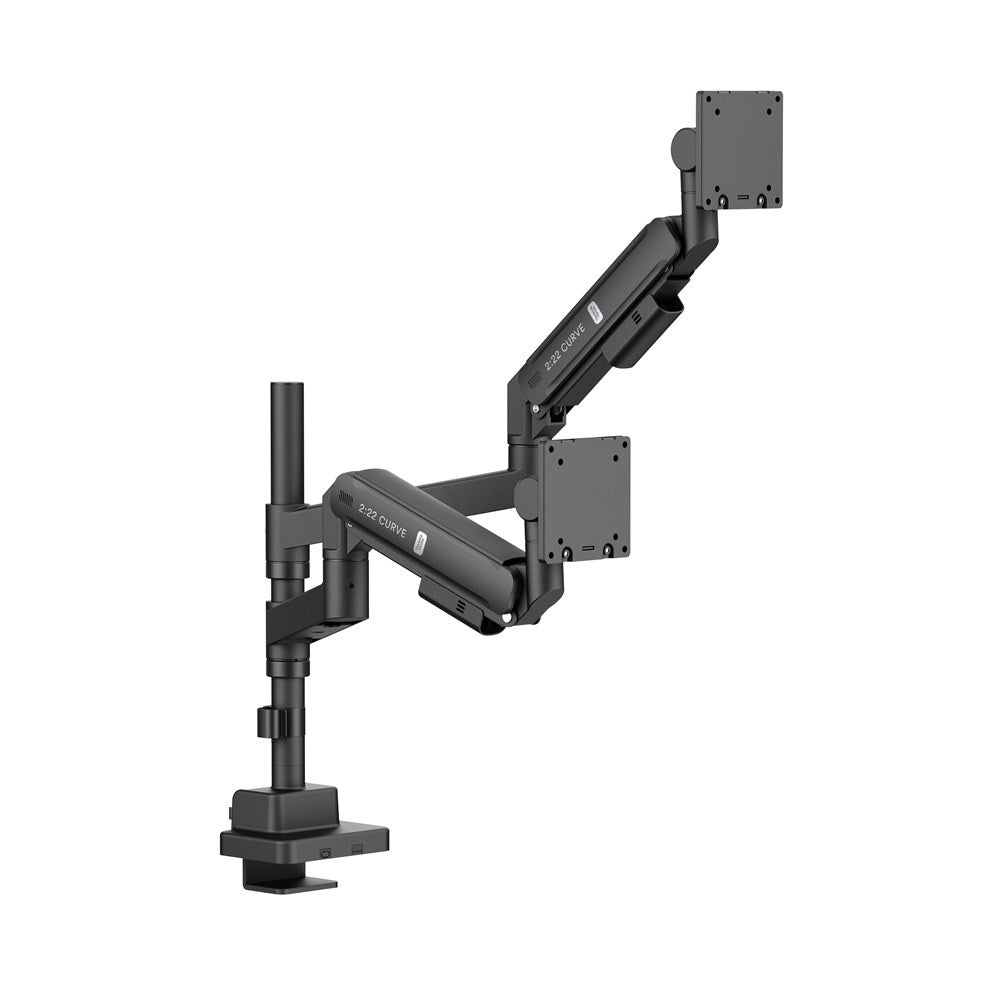

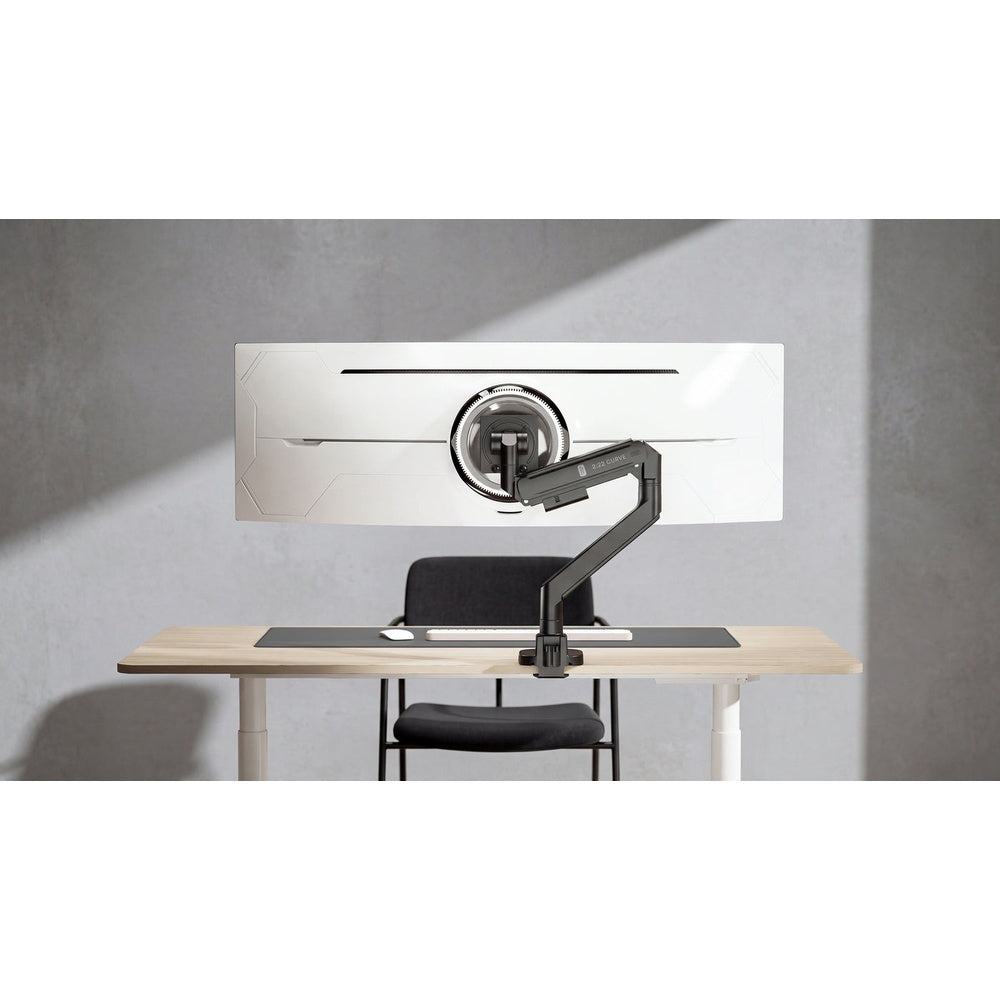

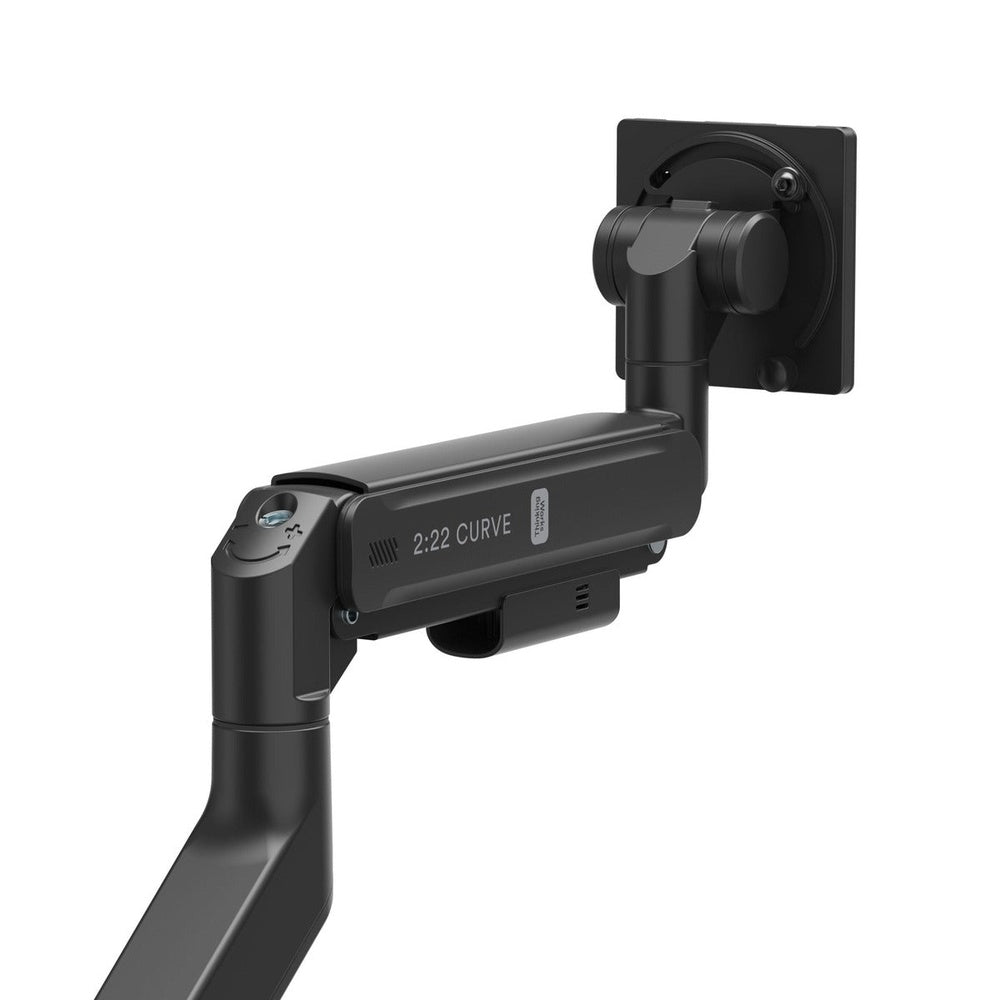

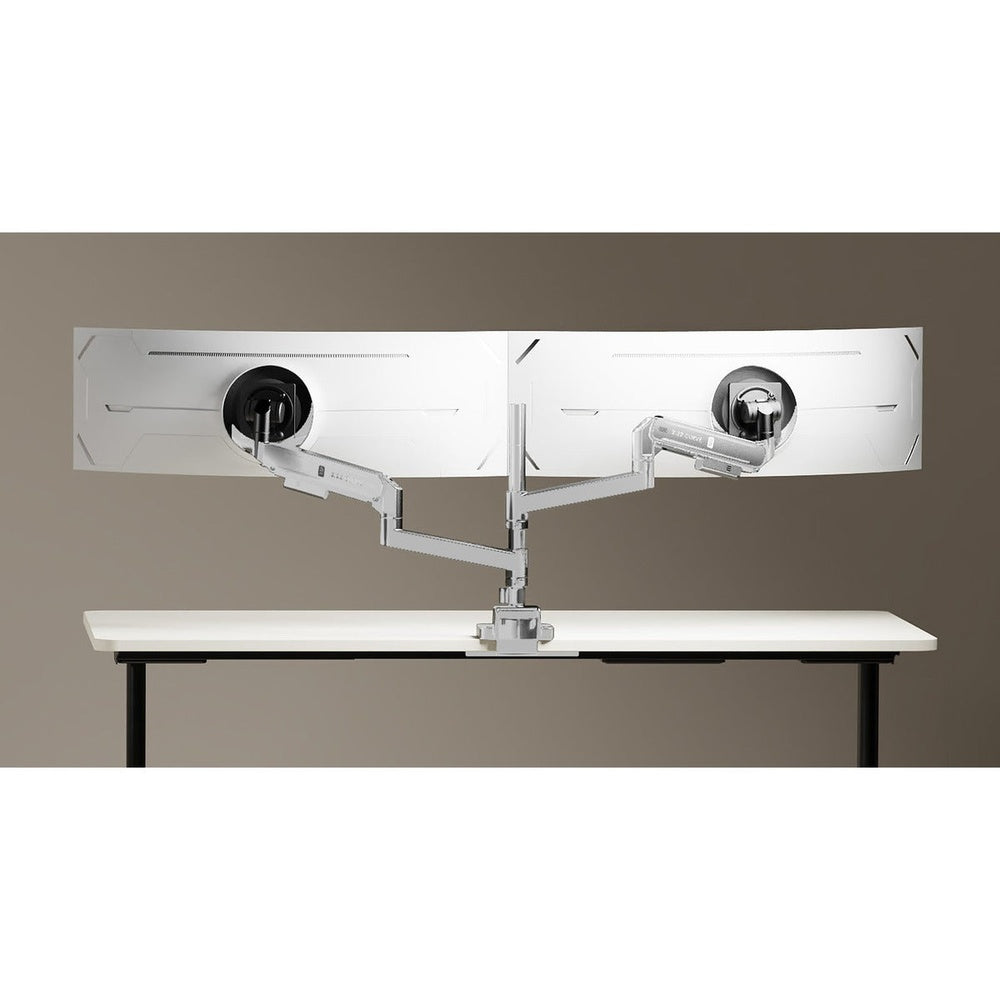

Thinking Works 2:22 Curve dual monitor arm in matte black holding two monitors side by side Thinking Works 2:22 Curve dual monitor arm in matte black, studio product view Thinking Works 2:22 Curve dual monitor arm in matte black, alternate angle Thinking Works 2:22 Curve dual monitor arm in matte white holding two monitors side by side Thinking Works 2:22 Curve dual monitor arm in matte white, studio product view Thinking Works 2:22 Curve dual monitor arm in matte white, alternate angle Thinking Works 2:22 Curve monitor arm detail view of the arm joint and matte black finish Thinking Works 2:22 Curve monitor arm detail view of the gas spring mechanism Top-down view of a workstation using the Thinking Works 2:22 Curve monitor arms, showing cable management Rear view of a desk setup with the Thinking Works 2:22 Curve monitor arm mounted via desk clamp

2:22 Curve Dual Monitor Arm


$297.00

Continue Shopping or View Cart

Collections: Dual Monitor Arms, Extensive range of Office Ergonomic Products, Monitor Arms, Monitor Arms for Multiple Monitors, New products

Heavy-Duty Dual Monitor Arm for Large and Curved Screens

The Thinking Works 2:22 Curve dual monitor arm holds two large screens on one base, and each arm takes up to 27 kg. Most dual arms give you that capacity or the smooth movement, not both. This one does both, which is what makes it useful for ultrawide and curved pairs.

Perfect For

  • Two ultrawide or curved monitors up to 57 inches each
  • Trading desks, control rooms and studios running heavyweight displays
  • Vertical dual-screen stacking when desk space is tight
  • Workstations where standard dual arms can't take the screen weight

Frequently Asked Questions

Can it hold two 49 inch ultrawide monitors?
Yes. Each arm takes up to 57 inches and 27 kg flat, 22 kg curved.

Can the screens be stacked vertically?
Yes. Run them side by side up to 750 mm high, or stack them vertically up to 840 mm.

Does it fit curved monitors?
Yes. The quick-release VESA plates suit 75 x 75, 100 x 100 and 200 x 200 mm patterns, including curved-screen models.

Will it fit my desk?
Both the clamp and bolt-through mount cover worktops 10 to 50 mm thick.

Features
  • Heavy-Duty Dual Support: Each arm holds flat screens from 2 to 27 kg and curved screens from 2 to 22 kg, sized from 24 to 57 inches

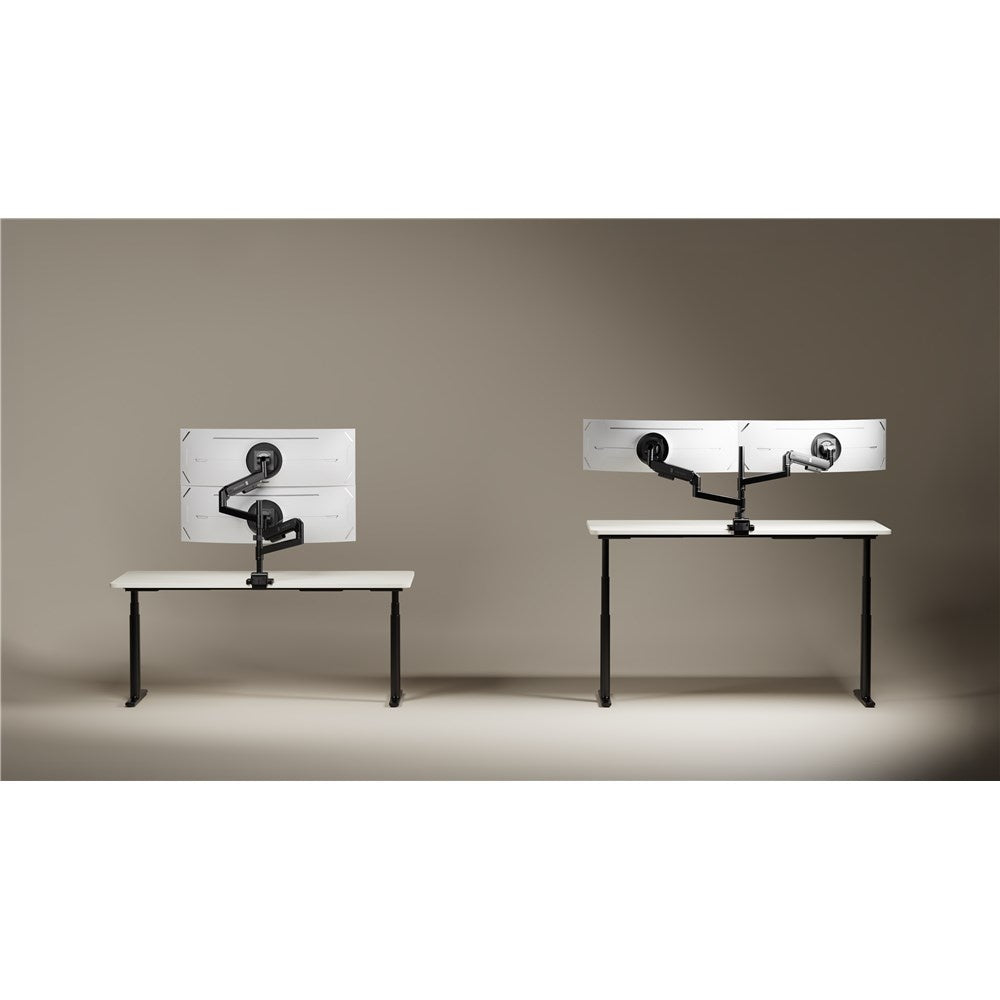

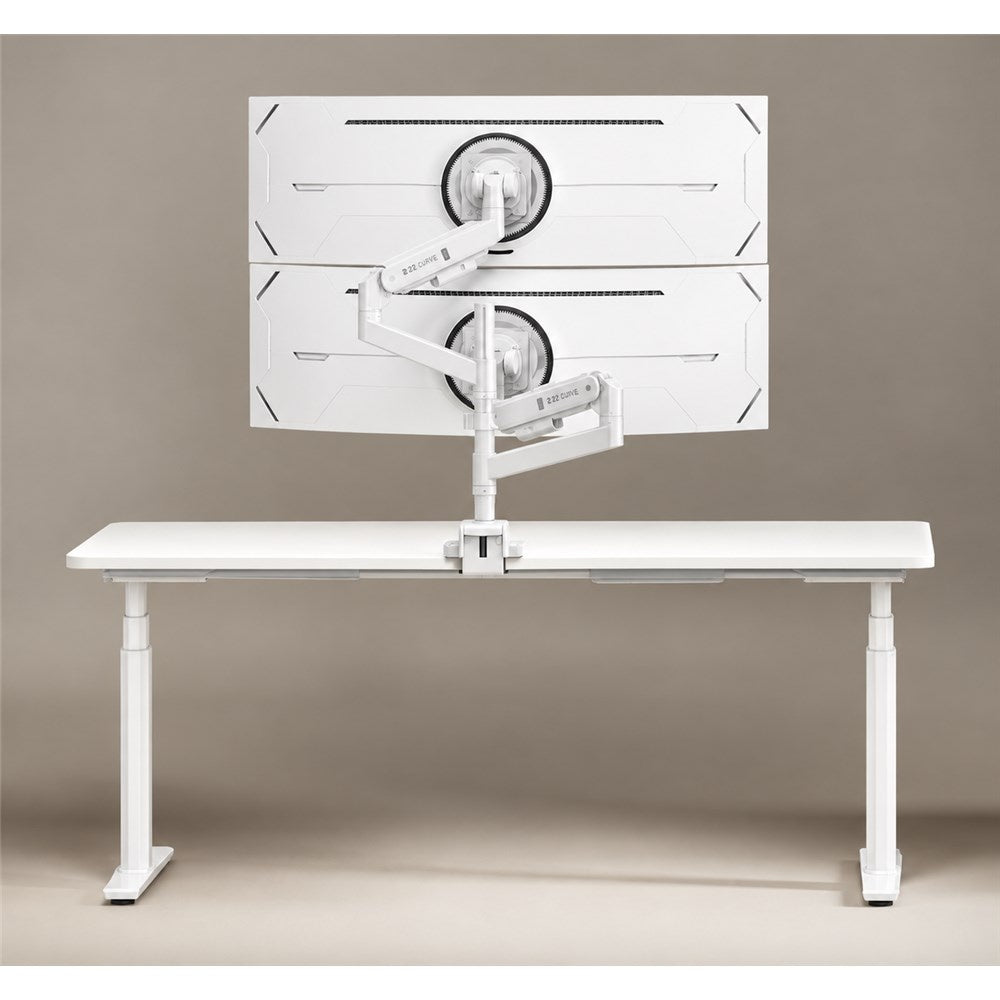

  • Side-by-Side or Vertical Stacking: Configure two screens side by side up to 750 mm high, or stack them vertically up to 840 mm
  • Advanced Gas Spring Mechanism: Smooth, fluid adjustment on both arms, with easy tension tuning to match each monitor's weight
  • Quick-Release VESA Plate: 360 degree rotating plates fit 75, 100 and 200 mm VESA patterns for fast monitor installation
  • Wide Movement Range: Tilts +60 degrees to -20 degrees, swivels 90 degrees each way and rotates 180 degrees for landscape or portrait use

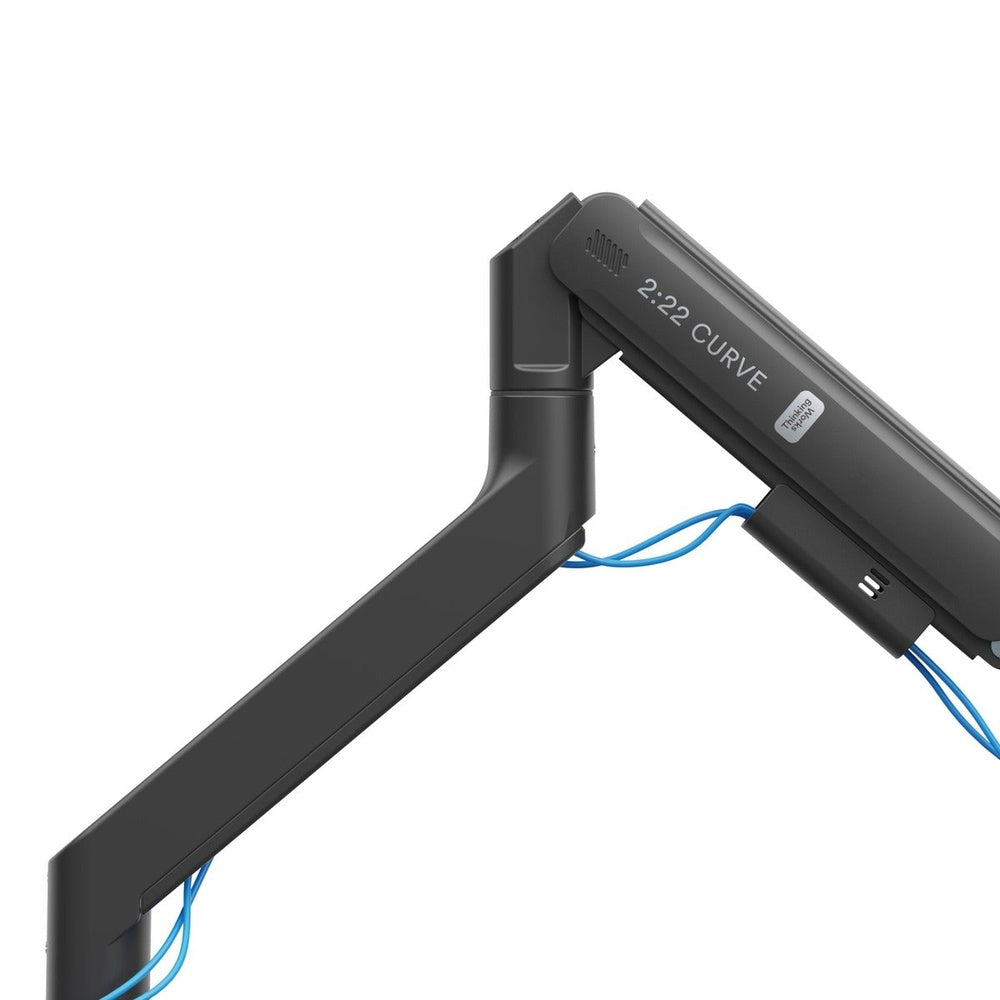

  • Integrated Cable Management: Routes cables along both arms and through the base for a tidy workspace
  • Two Mounting Options: Desk clamp and bolt-through both suit worktops 10 to 50 mm thick
  • 7 Year Manufacturer Warranty: Backed by Thinking Works
Specifications
Weight Capacity 2 to 27 kg per arm (flat screens); 2 to 22 kg per arm (curved screens)
Fit Screen Size 24 to 57 inch, straight or curved
Display Compatibility VESA 75 x 75, 100 x 100 and 200 x 200 mm, quick release, centre mounted only
Materials Aluminium arm and base, ABS trim, steel VESA bracket
Colours Matte Black or Matte White
Warranty 7 years

Screens shown in images are for illustration only and are not included.
